Fireproof Rock Wool Sandwich Panel - Galvanized Steel Insulated Board for Roof, Wall & Partition

Name: Fireproof Rock Wool Sandwich Panel Galvanized Steel Insulated Board for Roof Wall amp Partition
Brand: LEADSUN
Price: 1.0 USD

Buy cheap Fireproof Rock Wool Sandwich Panel - Galvanized Steel Insulated Board for Roof, Wall & Partition product

Supply Ability : 1000 tons/month

Size : customizable

Model Number : SUNWOOL

package : tray

MOQ : 100 psc

Delivery Time : 7 days

Payment Terms : L/C,D/P,T/T,Western Union

Price : 1.0usd - 5.0usd

Package : plastic bag

Certification : ISO CE

Refractoriness : 750C

Brand Name : LEADSUN

Material : mineral wool / Polyurethane

Place of Origin : CHINA

Packaging Details : Plastic Bag

Contact Now

Fireproof Rock Wool Sandwich Panel - Galvanized Steel Insulated Board for Roof, Wall & Partition

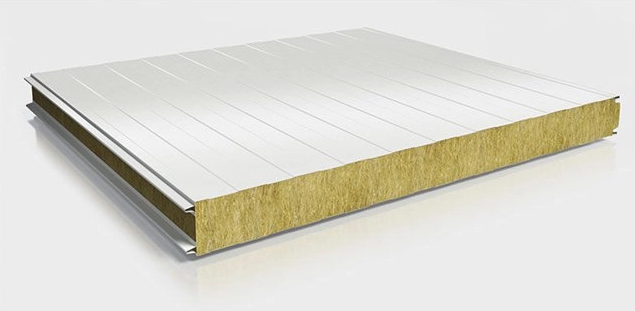

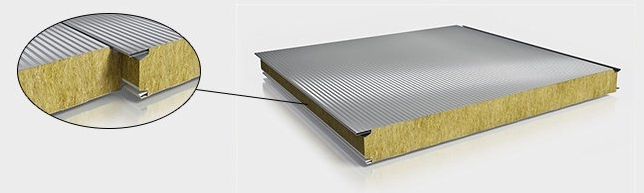

Mineral Wool Sandwich Panels feature a three-layer construction with external and internal dyed galvanized or aluminum corrugated plates, and a core of high-density mineral wool. These panels are ideal for applications requiring exceptional fire resistance and are among the most effective acoustic materials in construction.

For example, a 50mm thick mineral wool sandwich panel can absorb sound exceeding 30dB/m², making it perfect for steel structure factory buildings, activity rooms, roofs, walls, clean room ceilings, and partitions.

Product Specifications

Panel Thickness	50mm, 75mm, 100mm
Standard Facings	Steel sheet coated with polyester paint, 25µm high zinc sheet with Zn 50 – Zn 180g stainless steel
Core Material Density	100/120 kg/m³
Thermal Conductivity	0.043 W/mK
Acoustic Insulation	27 dB
Standard Length	2m-12m
Width	950mm, 1150mm
Fire Resistance	Non-flammable
